KEY FEATURES
-
Amazing VCO/VCF/VCA module from the '80s
-
Authentic reproduction of original "System 100M*" circuitry
-
Complete synth voice with internal patched signal flow for ease of use
-
VCO features 3 selectable waveforms (triangle, ramp and square with PWM)
-
VCO offers pitch control over a wide range plus 1 audio output and 2 CV inputs
-
VCF features cutoff, frequency and resonance controls plus 2 audio inputs and 2 CV inputs
-
Oscillator PWM with manual and external CV control
-
VCA features gain control plus 2 audio inputs, 2 audio outputs (low/high) and 2 CV inputs
-
17 controls and switches give you real-time access to all important parameters
-
Eurorack specs: 16 HP, 60 mA +12 V, 50 mA -12 V
DESCRIPTION
The 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they’re about to get even better.

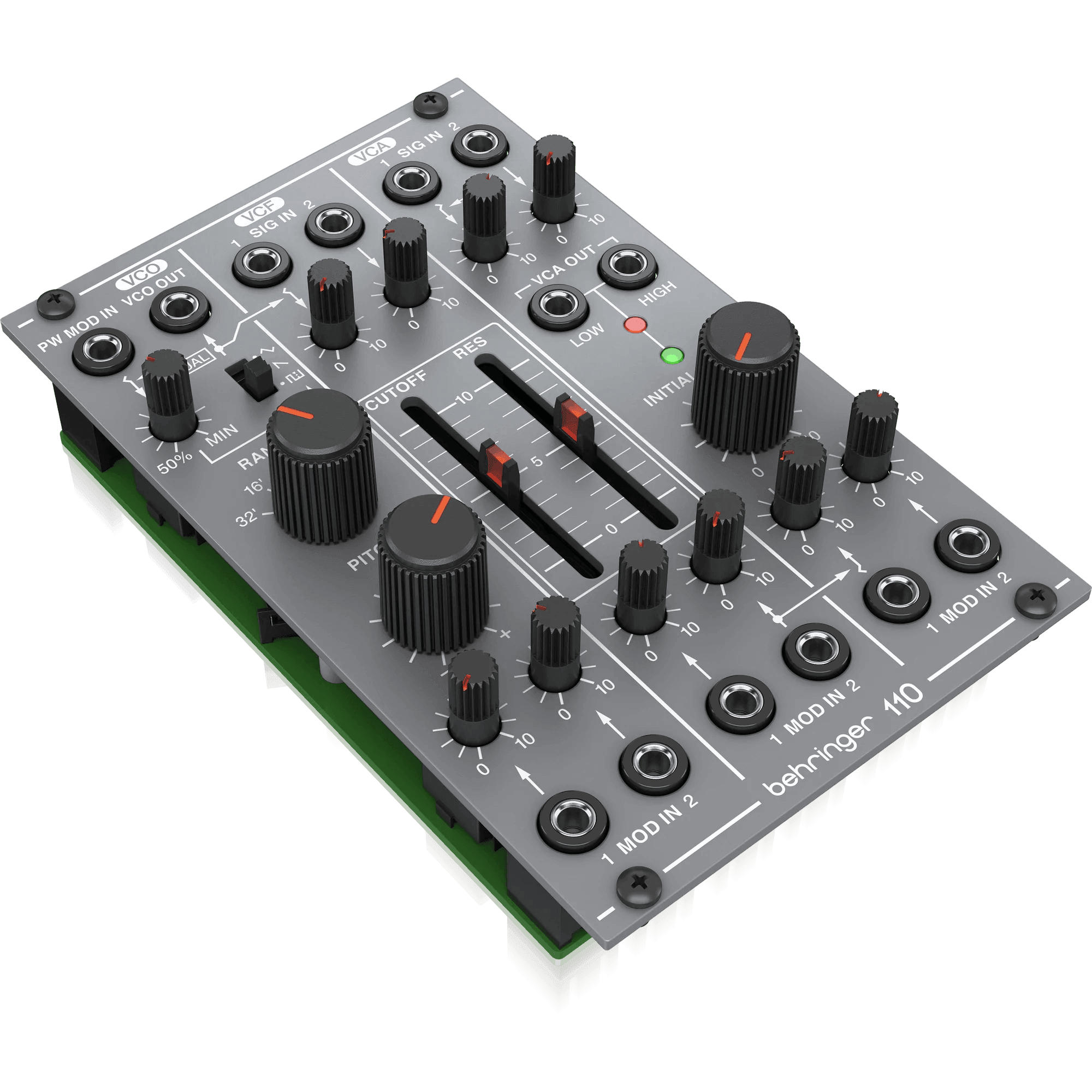

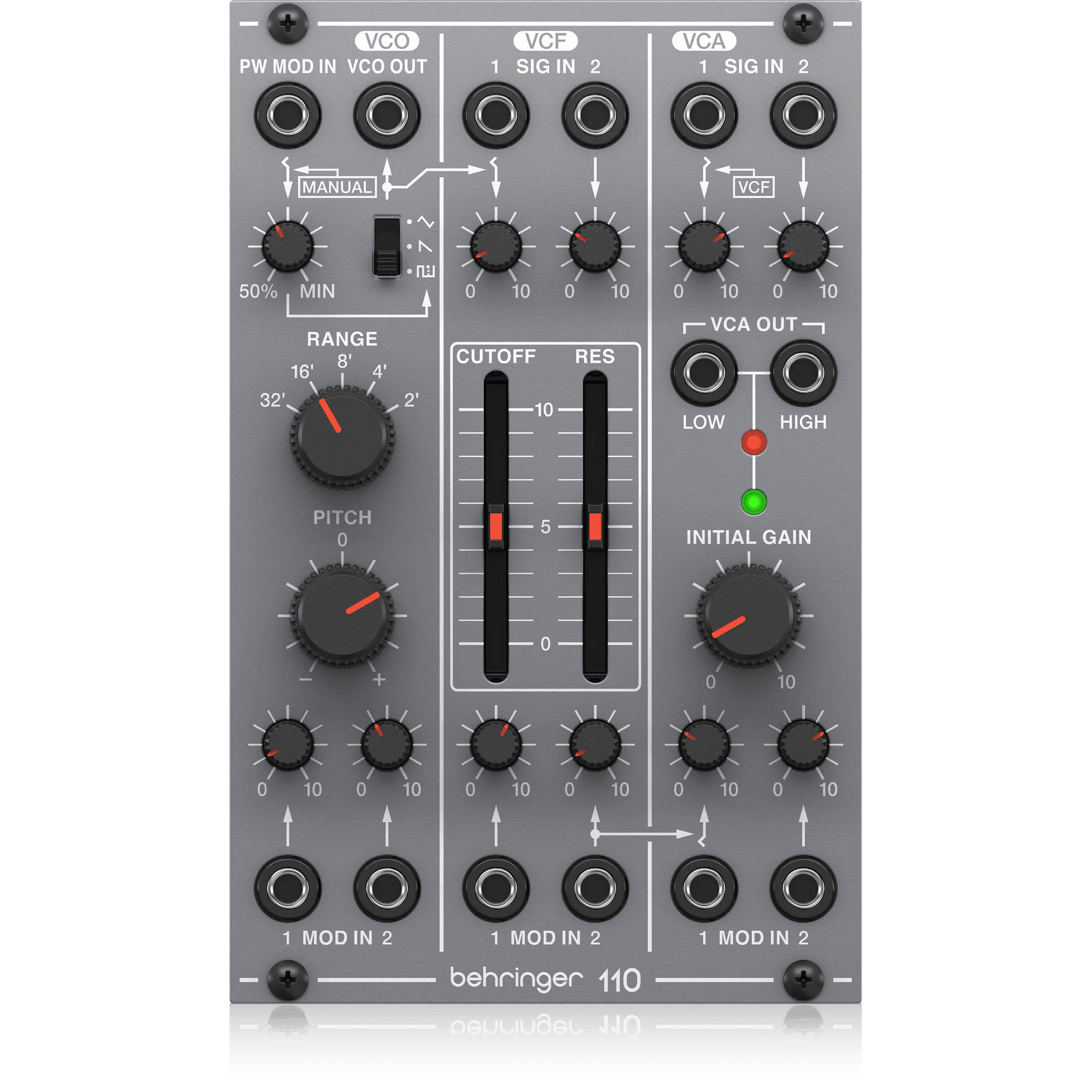

SYSTEM 100 110 VCO/VCF/VCA
This is the Behringer System 100 110 VCO/VCF/VCA Module. An authentic reproduction of the original “System 100M” circuitry from the 80s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the 110 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun!
Controlling the Oscillator
The 110 comes with a complete synth voice with an internally patched signal flow for ease of use and to save patching time so you can focus on your music. You can vary the VCO section by selecting one of three waveforms; triangle, ramp and Pulse Width Modulation which can be adjusted by the Mod Manual knob. The VCO also offers pitch and range control knobs as well as one audio output, which can be routed to another source, and two CV inputs.
VCF and VCA
The VCF features cutoff frequency and resonance sliders while the VCA comes with two audio outputs (low/high). Both the VCF and VCA each feature two audio inputs and two CV inputs that allow for other sources to be plugged into the 110, making it a must-have in any modular synth.
Eurorack Ready
Installing the 110 VCO/VCF/VCA is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the 110 VCO/VCF/VCA to be mixed with other synth modules for a truly unique set up.
Whether you’re just getting into modular synths or looking to complete your collection, the 110 VCO/VCF/VCA module from Behringer is a great tool to have when creating amazing music.
SPECIFICATIONS
Inputs
| Pulse width mod | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
>70 kΩ, unbalanced |
| Maximum input level |
0 V to +10 V, 4% per volt |
| Signal input | |
| Type | |
| Impedance |
>50 kΩ, unbalanced |
| Max input level |
+17 dBu @ unity gain |
| VCO mod input | |
| Type |
2 x 3.5 mm TS jacks, summed |
| Impedance |
>50 kΩ, unbalanced |
| CV range |
0 V to +10 V, 1 V/oct |
| VCF mod input | |
| Type |
2 x 3.5 mm TS jacks, summed |
| Impedance |
>50 kΩ, unbalanced |
| CV range |
0 V to +10 V, 1 V/oct |
| VCA mod input | |
| Type |
2 x 3.5 mm TS jacks, summed |
| Impedance |
>50 kΩ, unbalanced |
| CV range |
0 V to +10 V, typically 1 V per 10 dB |
Outputs
| VCO output | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
1 kΩ, unbalanced |
| Max output level |
10 V p-p |
| Frequency range with no external CV |
<10 Hz to 500 Hz |
| Frequency range using external CV |
<1 Hz to 30 kHz |
| VCA output | |
| Type |
2 x 3.5 mm TS jacks, AC coupled |
| High impedance |
1 kΩ, unbalanced |
| Low impedance |
3 kΩ, unbalanced |
| High max output leve |
+18 dBu |
| Low max output level |
-2 dBu |
| High output noise |
<-60 dBu, 22 Hz -22 kHz |
| Low output noise |
<-80 dBu, 22 Hz -22 kHz |
Controls
| Pulse width manua |
50% to min |
| Waveform |
Triangle, sawtooth, pulse |
| Range |
32’, 16’, 8’, 4’, 2’ |
| Pitch |
2 octave range |
| Cutoff frequency |
20 Hz to 20 kHz |
| Resonance |
Off to self oscillation |
| Sig in level |
-∞ to unity gain |
| Mod in level |
-∞ to unity gain |
| VCA initial gain |
Power
| Power supply |
Eurorack |
| Current draw |
80 mA (+12 V), 50 mA (-12 V) |
Physical
| Dimensions |
81 x 129 x 46 mm (3.2 x 5.1 x 1.8") |
| Rack units |
16 HP |
| Weight |
0.19 kg (0.42 lbs) |
