Alesis

3632

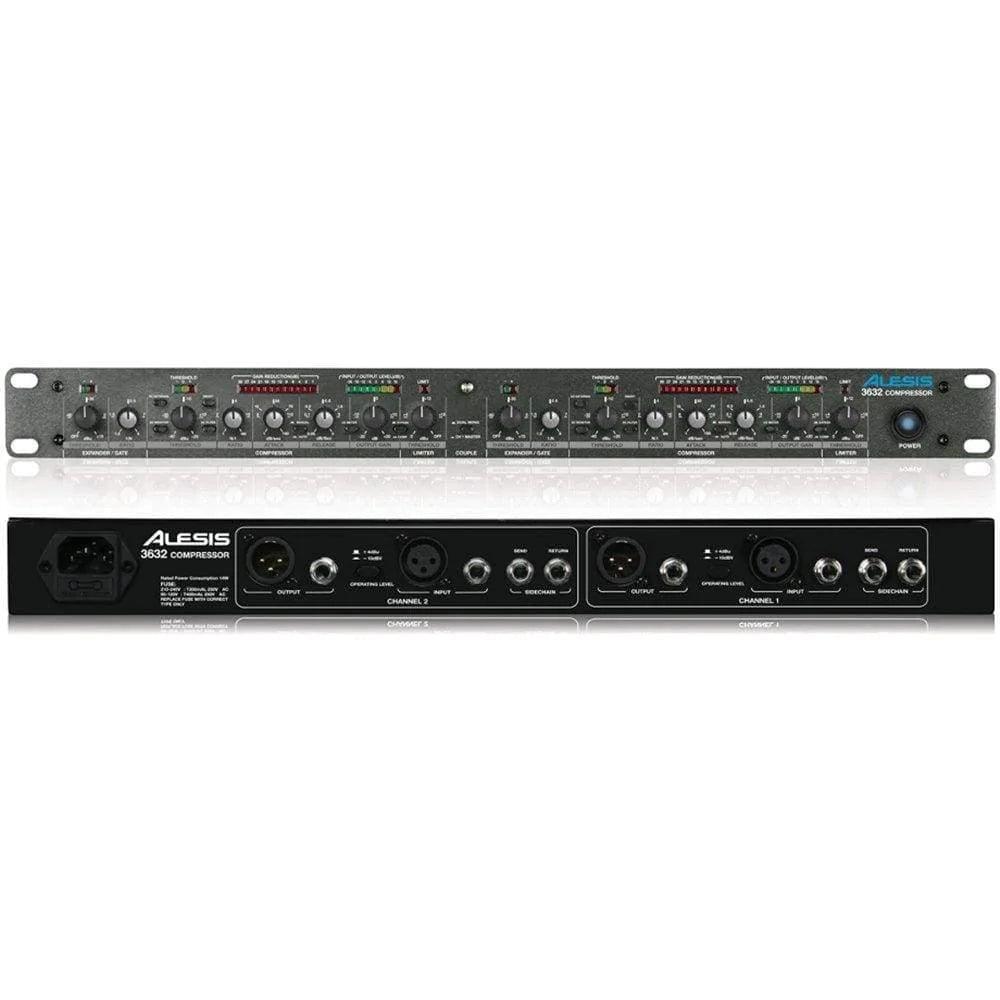

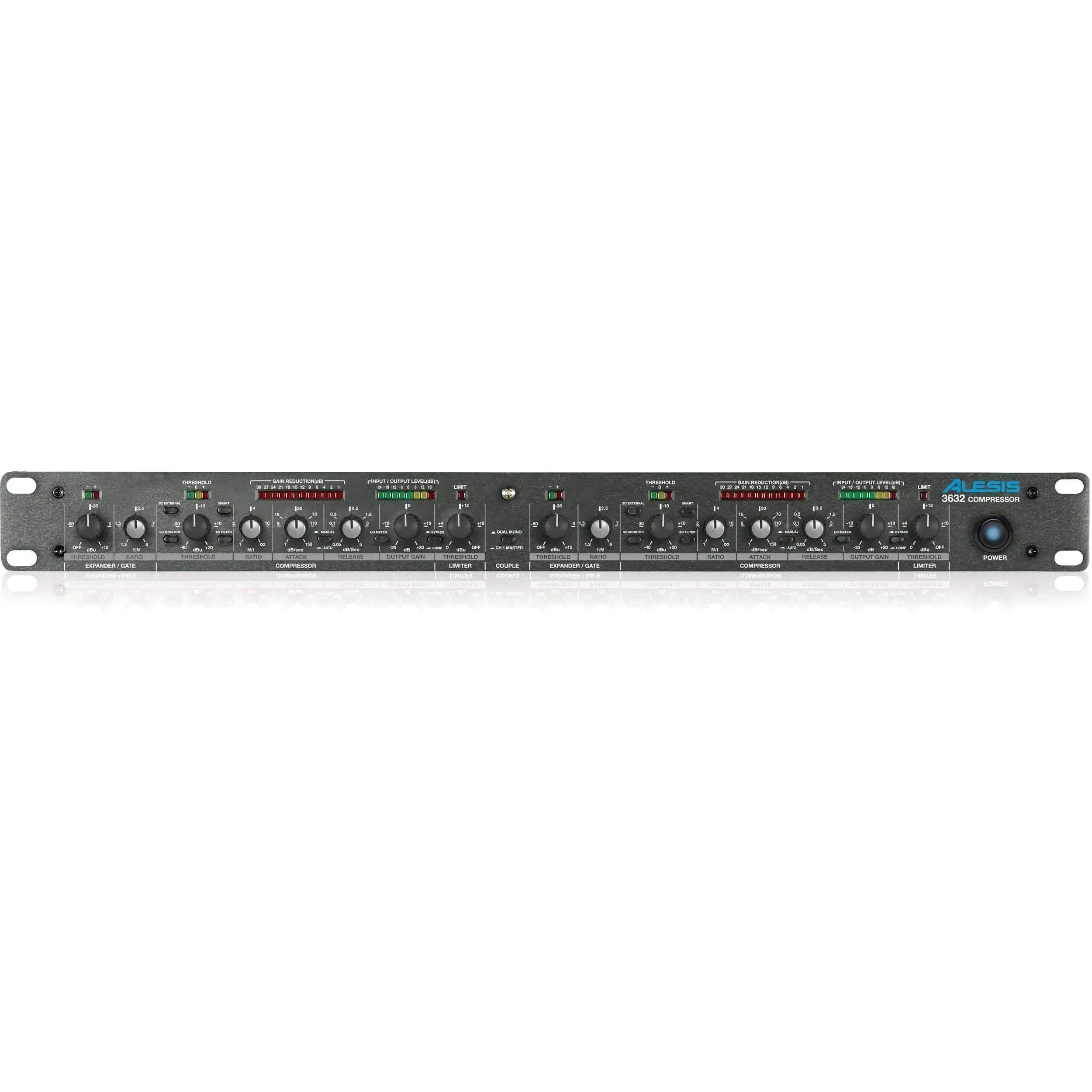

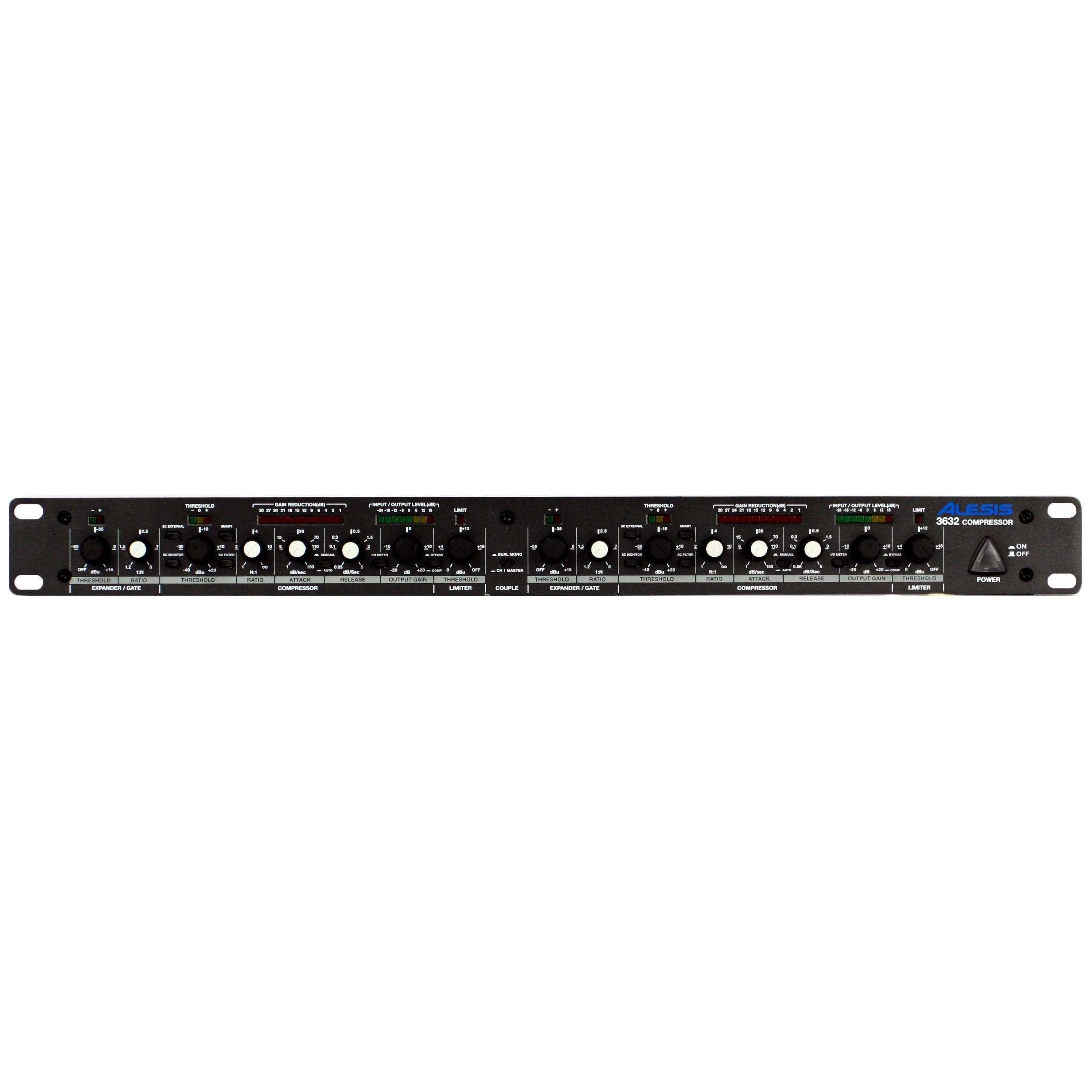

Alesis 3632 Compressor

Notify me when this product is available:

Delivery, Warranty & Returns Information

The 3632 Compressor is the follow-up to the 3630 Compressor, the most popular dynamics processor ever made. The 3632 Compressor builds on the popular design and features of its predecessor by providing two independent, full-featured compressor/limiters in one compact rack. It delivers superb sonic quality for any application from studio recording to live sound or broadcast.



FEATURES
3632
Stereo compressor/expander/limiter/gate for complete dynamics management
Minimized signal path for optimal sound quality
Intelligent Ratio adjusts expansion based on input signal
Intelligent Gain auto-adjusts output
Adjustable attack and release time for manual control
Couple switch for a one-touch selection between two mono channels and stereo-linked operation
Sidechain send and return for use in an external effects loop
Switchable low-cut filter minimizes audio-program pumping triggered by kick drum
Gain-reduction LEDs and switchable input/output-level LED meters for visual monitoring of critical values
Bypass switches on both channels
SPECIFICATIONS

Function: Compressor/expander/gate

Number of Channels: 2

Inputs: 2x XLR, 2x 1/4" TRS, 2x 1/4" TS

Return Outputs: 2x XLR, 2x 1/4" TRS, 2x 1/4" TS Send

Maximum Input Level: +21dBu

Compression Threshold: -40dB to +20dB

Compression Ratio: 1:1 ‚ Infinity:1

Attack Time: 0.1 mSec to 150 mSec/20dB

Release Time: 0.05 mSec to 5 Sec/20dB Gate

Threshold: Off to +15dB

Gate Ratio: 1:1.2 to 1:8

Maximum Output Level: +21dBu

Make-up Gain: -20dB to +20dB

Frequency Response: 20Hz to 20kHz, +0/-0.05dB

Dynamic Range: 125dB

Noise: THD+N: 0.01% typical, 1kHz @ +4dBu

Power Requirements: 95~120VAC/210~240VAC, 50/60Hz

Dimensions (WxDxH): 19 x 7.7 x 1.75" (483 x 195 x 45mm)

Weight: 6.8 lbs (3.1kg)
