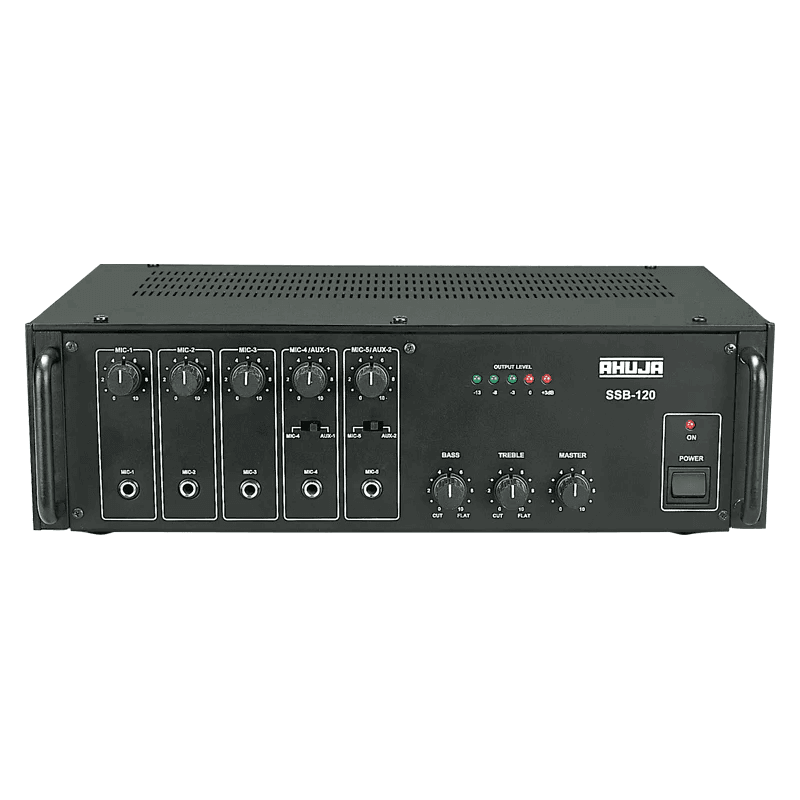

Are you looking for a professional-grade audio mixer amplifier for your PA system? The AHUJA SSB-120 PA Mixer Amplifier is the perfect choice for you! This mixer amplifier offers 5 mic and 2 Aux inputs with a line output for connecting to a booster amplifier and preamplifier output for recording the program. It also has cut type bass and treble controls and an instant transfer to DC power (car battery) in case of AC power failure. With a power output of 160W Max., 120W RMS at 10% THD, 105W RMS at 5% THD, and 95W RMS at 2% THD, this mixer amplifier is sure to provide you with the perfect sound every time.

FEATURES:

🔊 5 Mic & 2 Aux Inputs: This mixer amplifier offers 5 mic and 2 Aux inputs for all your audio needs.

🔊 Line Output: It also has a line output for connecting to a booster amplifier.

🔊 Preamplifier Output: The preamplifier output allows you to record the program.

🔊 Cut Type Bass & Treble Controls: You can adjust the bass and treble with the cut type controls.

🔊 Instant Transfer to DC Power: In case of AC power failure, this mixer amplifier can instantly transfer to DC power.

SPECIFICATIONS:

- Power Output: 160W Max., 120W RMS at 10% THD, 105W RMS at 5% THD, 95W RMS at 2% THD

- Input Channels: 5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ

- Frequency Response: 50-15,000Hz ±3dB

HOW IT WORKS:

1. Connect your audio source to the mixer amplifier using either the 5 mic inputs or 2 aux inputs.

2. Adjust the bass and treble with the cut type controls.

3. Connect the line output to a booster amplifier for increased sound.

4. Connect the preamplifier output to record the program.

5. In case of AC power failure, the mixer amplifier can instantly transfer to DC power.
