Ahuja

APA480

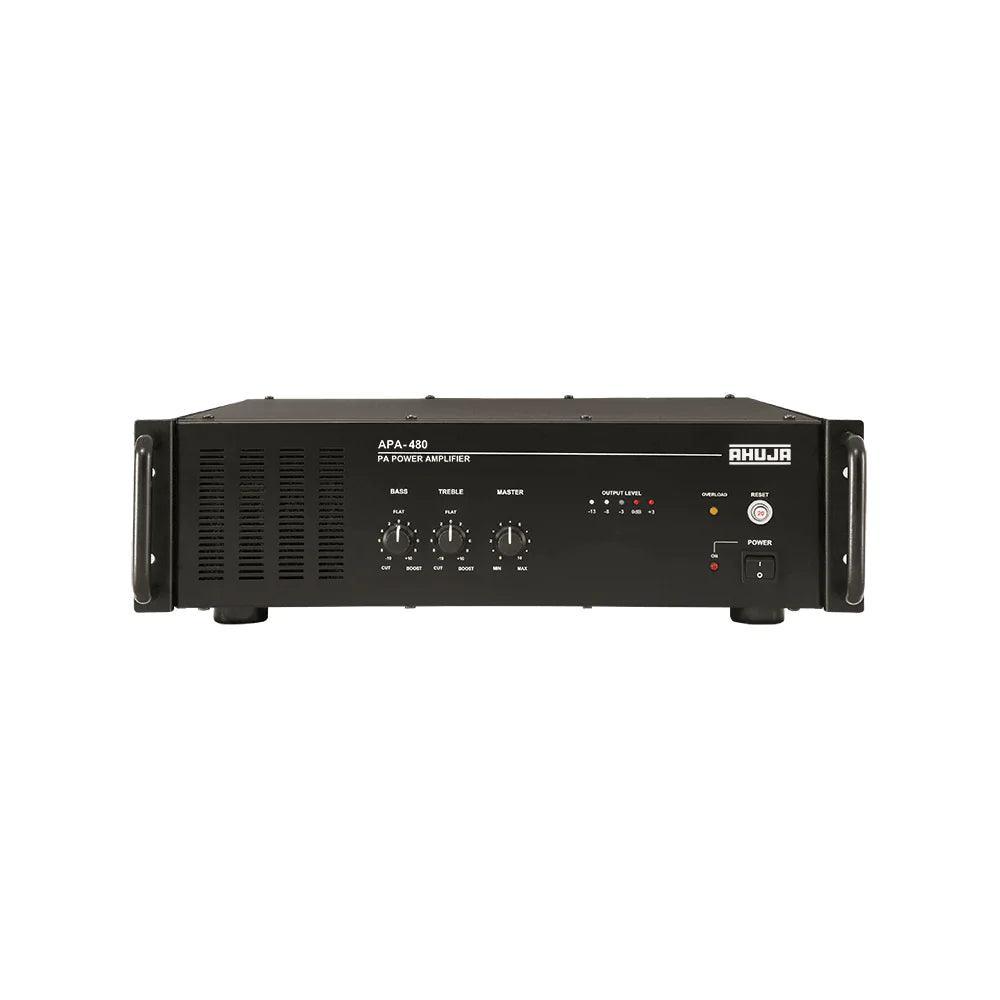

Ahuja APA480 PA Amplifier 600W w/ 1 Priority 2 Aux Inputs

APA-480 600 WATTS Installation PA Power Amplifier 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs. 100V input is provided for connecting another amplifier’s output in long line applications. Ground lift switch provided at rear panel which helps to reduce the hum that occurs due to multiple ground loops in the installations. Resettable circuit breaker for protection against overload and short circuit. Loop through output for connecting another booster amplifier.

Features

  • 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs.
  • 100V input is provided for connecting another amplifier’s output in long line applications.
  • Ground lift switch provided at rear panel which helps to reduce the hum that occurs due to multiple ground loops in the installations.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Loop through output for connecting another booster amplifier.
  • 19” Rack-mountable chassis.
  • Instant transfer to DC power (Car Battery) if AC power fails.

Tech Specs

Power Output 750W Max., 600W RMS at 10% THD, 550W RMS at 5% THD, 500W RMS at 2% THD, 480W RMS at 1% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 1 × 200mV/470kΩ (unbal.), 2 × 1V/50kΩ (bal.), 1 × 100V Input/50kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Loop through 1 × 200mV/600W, 2 ×1V/1kW
Speaker Outputs 4Ω, 8Ω, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption AC: 1200VA DC: 15A
Dimensions W485 × H142 × D510 mm
Weight 32.20kg
