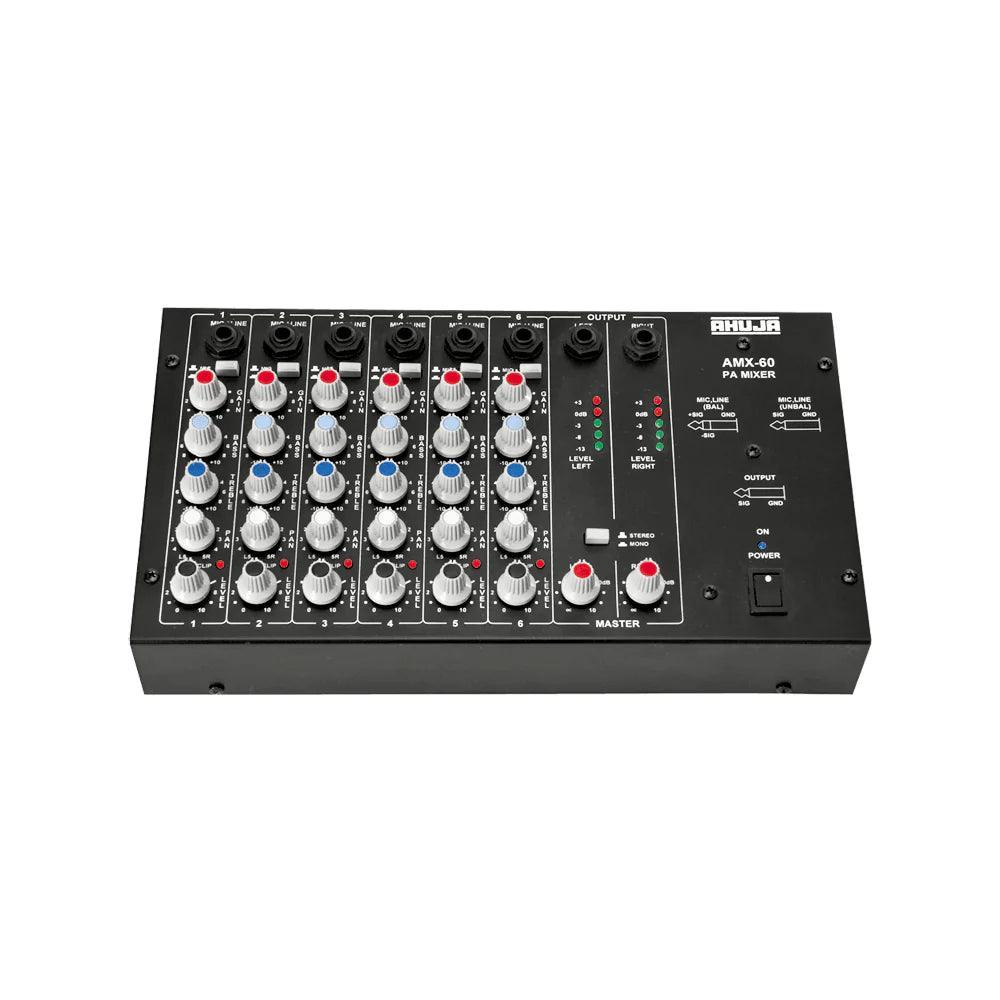

General Purpose 6 Channel PA Mixer Preamplifier
Input Channels: Each Channel has a 1/4” balanced phone jack for Mic/Line & accepts both balanced & unbalanced signals.
MONO/STEREO Output: Mono output is available from either Left or Right output jacks when the switch is in ‘Mono’ position.
Each channel has Gain, Bass, Treble, PAN and Level controls with Clip LED indicator.
Individual five-segment LED array for left and right outputs.
|Power Requirements||AC: 220-240v 50/60Hz|
|MIC Input (Impedance/Gain)||2kΩ Balanced/62dB, 1kΩ Unbalanced/62dB|
|LINE Input (Impedance/Gain)||20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB|
|Frequency Response||20Hz-18 kHz (-1dB)|
|Tone Controls||Bass: ± 12dB at 100Hz, Treble: ± 12dB at 10kHz|
|Line Output (RATED/MAX)||0dBm/+18dBm (775mV/6.5V)|
|Signal to Noise Ratio||> 68dB|
|Dimensions||W295 X H70 X D180mm|
