DESCRIPTION

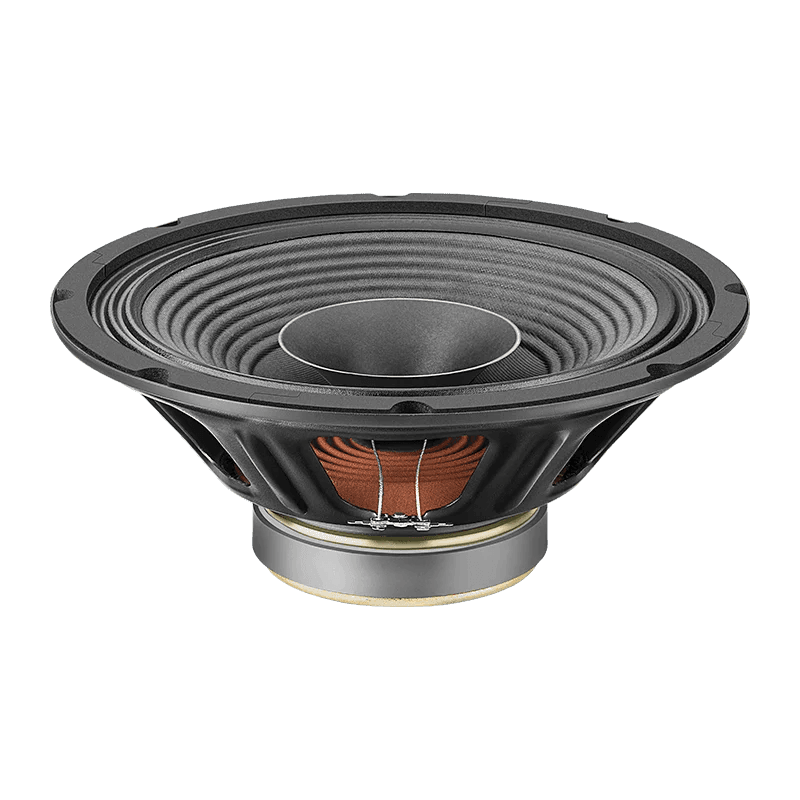

A high-efficiency 12″ dual-cone full-range PA speaker designed for wide frequency response and robust performance. Available in two models: SK‑12FRX (8 Ω) and SK‑12FRZ (16 Ω), both offering transparent, low-distortion audio utilizing high-quality imported components.
KEY FEATURES
- They are 30.48CM (12") dual cone full-range PA speakers with a very wide frequency range 55-16,000Hz.
- The impedance of SK-12FRX is 8Ω and SK-12FRZ is 16Ω.
- High-quality specially designed imported parts for low distortion and a clean transparent sound.
- Dual-cone full-range 12″ (305 mm) speaker for broad frequency coverage (approx. 55 Hz to 16 kHz)
- Available in two impedance options: 8 Ω (SK‑12FRX) and 16 Ω (SK‑12FRZ)
- High-efficiency design suitable for PA applications
- Constructed using imported parts to ensure low distortion and clean sound
SPECIFICATIONS
| Parameter | Value |
|---|---|
| Power Rating | 100 W RMS / 200 W Programme |
| Nominal Diameter | 305 mm (12″) |
| Nominal Impedance | 8 Ω / 16 Ω |
| Sensitivity (1 W/1 m) | 97 dB |
| Magnet Weight | 1.1 kg |
| Resonant Frequency (Fs) | 50 Hz |
| DC Resistance (Re) | 6.4 Ω / 13.0 Ω |
| Electromagnetic Q (Qes) | 0.758 |
| Mechanical Q (Qms) | 9.36 |
| Total Q (Qts) | 0.7 |
| Compliance Equivalent Volume (VAS) | 104 litres |
| Surface Area of Cone (Sd) | 510 cm² |
| Reference Efficiency (η₀) | 1.7 % |
| Voice Coil Diameter | 1.5″ |
| Overhang (Xmax) | 1.5 mm |
| Moving Mass (Mms) | 35.23 g |
| BL Product (BL) | 9.7 Tm |
| Coil Inductance (Le) | 0.79 mH |
| Overall Diameter | 311 mm |
| Depth | 130 mm |
| Baffle Hole Diameter | 285 mm |
| Bolt Mount Diameter (PCD) | 292 mm (8 bolts) |
| Weight | 3.20 kg |
