FEATURES
- Three-way line array element
- 2 x 12” LF drivers
- 1 x 10” Neo Midrange driver
- 2 x 2.55” Neo HF compression drivers
- Birch plywood construction
- 1410 watts AES (RMS)
- 2820 watts Programme
- 5640 watts Peak
- 16 ohms impedance

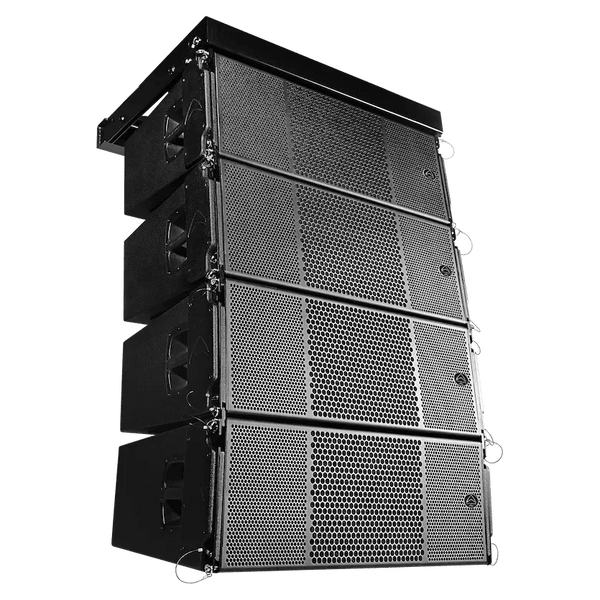

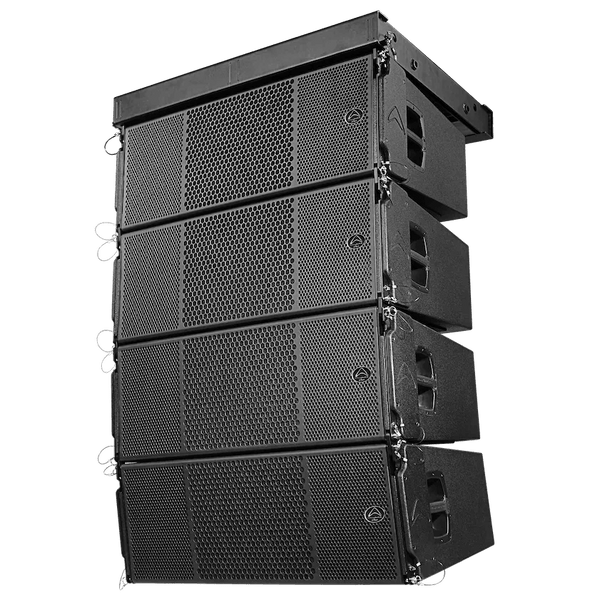

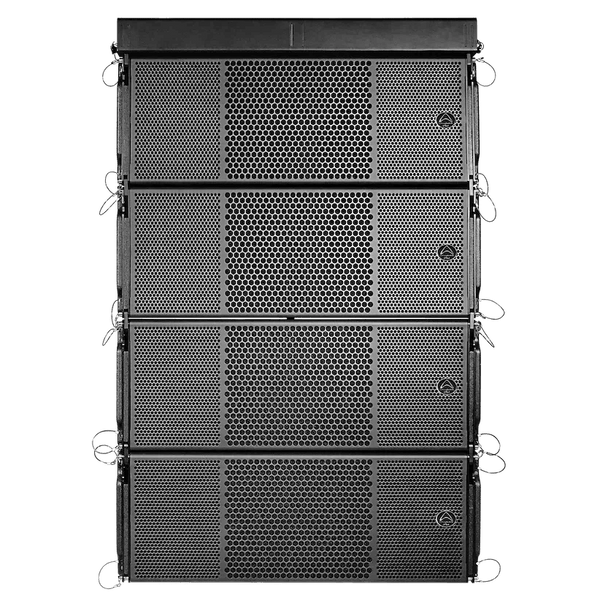

- Fly frame to support up to 12 elements (900 kg)
DESCRIPTION

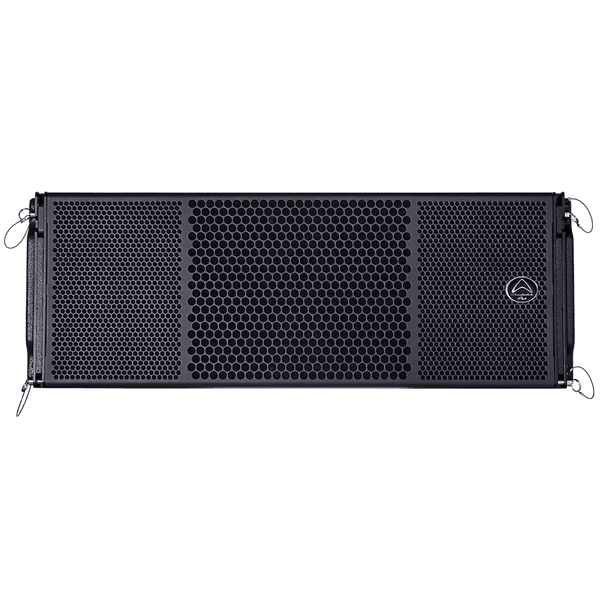

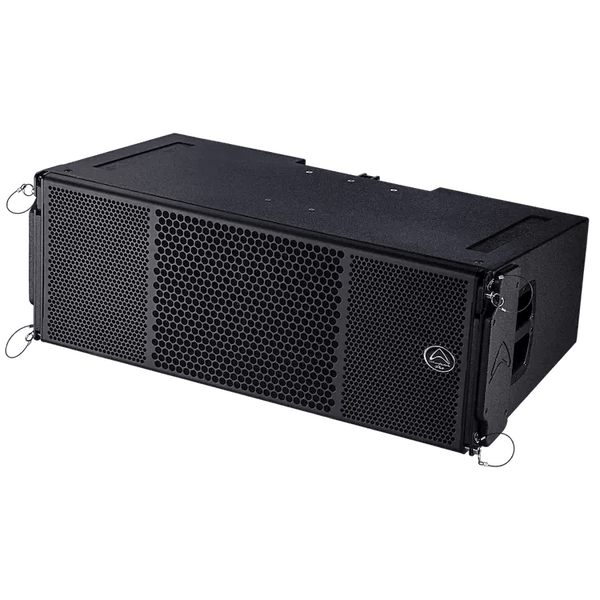

WLA-312X is an advanced three-way line array speaker system capable of handling vast amounts of power – while remaining sonically clear, precise and accurate. Rated at 1410 W AES (RMS) per cabinet and boasting highly efficient custom Wharfedale Pro drivers, the WLA-312X can deliver an astonishing 138 dB Max SPL @ 1 meter.
Custom WP drivers have been selected to ensure that this series not only has the power you would expect, but the three-way configuration brings a new sonic dimension and definition.

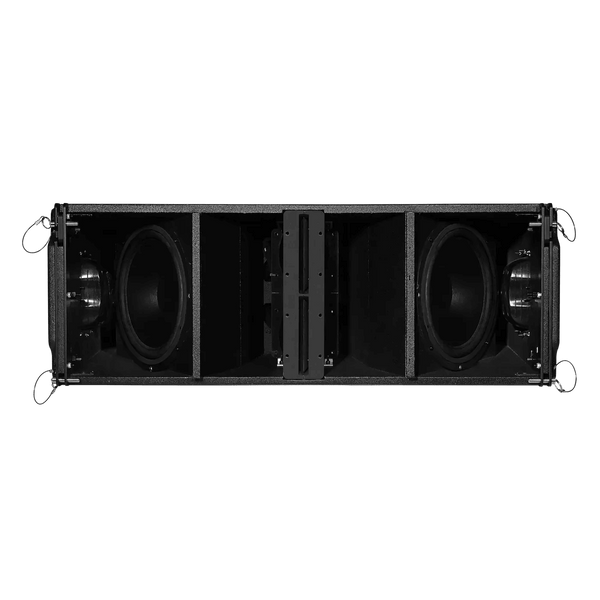

With dual 12” woofers, a single 10” midrange driver and dual 2.55” compression drivers, the WLA-312X has everything needed for large venue coverage. In addition, there is no need to fly subwoofers within the array – the WLA-312X has already got plenty of low-end punch.
The WLA-312X is designed to be controlled and tuned with either a Wharfedale Pro Versadrive signal processor or a DP-D series amplifier. Either of these DSP systems deliver full signal routing and processing to maximise the power and sonic effect of the WLA-312X array.
SPECIFICATIONS
| Frequency Response (+/-3 dB) |
50-18 KHz |
| Frequency Range (-10 dB) |
40-20 KHz |
Low Frequency Transducer
| Sensitivity (2.83V / 1 Meter) |
HF: 114 dB / MF: 105 dB / LF: 102 dB |
| Calculated Maximum SPL @ 1 Meter |
HF: 142 dB / MF: 136 dB / LF: 138 dB |
| Size (mm / inches) |
313 mm / 12” |
| Voice Coil Size (mm / inches) |
75.5 mm / 3” |
| LF Magnet Material |
Ferrite |
| LF Frame Material |
Aluminium |
| LF Power (AES2-2012) |
2 x 450 W |
Mid Frequency Transducer
| Size (mm / inches) |
260 mm / 10” |
| Voice Coil Size (mm / inches) |
65 mm / 2.55” |
| MF Frame Material |
Aluminium |
| MF Power (AES2-2012) |
350 W |
High Frequency Transducer
| HF Driver Type |
Compression Driver |
| Coil Size (mm / inches) |
65 mm / 2.55” |
| Exit Size (mm / inches) |
1.4″ |
| Diaphragm Material |
Titanium |
| Rated Impedance |
16 Ω (2 x 8 Ω) |
| HF Power (AES2-2012) |
160 W (2 x 80 W) |
| Nominal Coverage (H x V) |
90H x 7.5V |
Power Ratings
| System Power AES (RMS) |
HF: 160 W / MF: 350 W / LF: 900 W |
| System Programme Power |
HF: 320 W / MF: 700 W / LF: 1800 W |
| System Peak Power |
HF: 640 W / MF: 1400 W / LF: 3600 W |
| Crossover Frequency |
160 Hz / 1.2 KHz |
Connections & Rigging

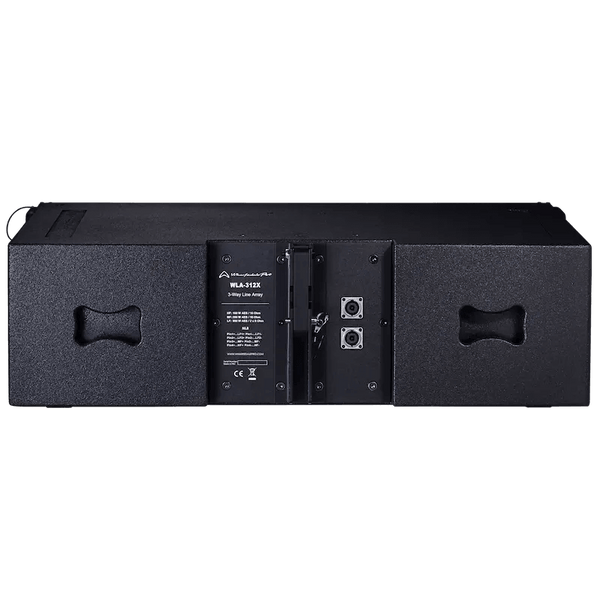

| Input Connector |
2 x Neutrik NL8MPR |

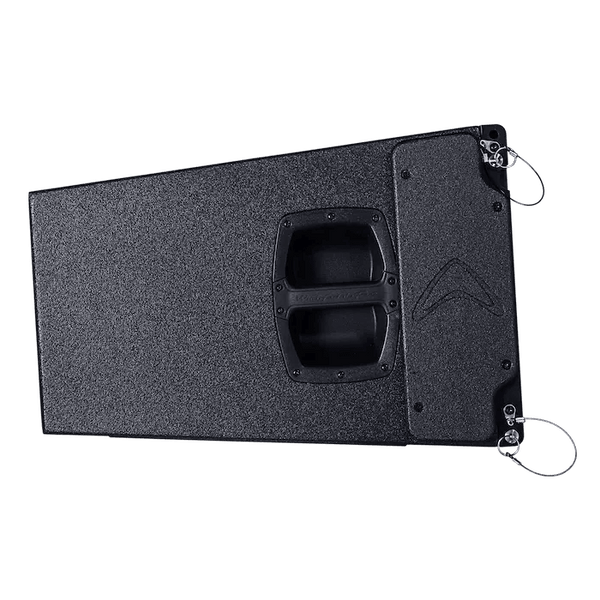

| Rigging |
3 points for rigging |
Enclosure
| Enclosure Material & Finish |
15 mm, 18 mm plywood |
| Colour Options |
Black paint |
| Grille Material & Finish |
Steel |
