Wharfedale Pro

DELTAX218B

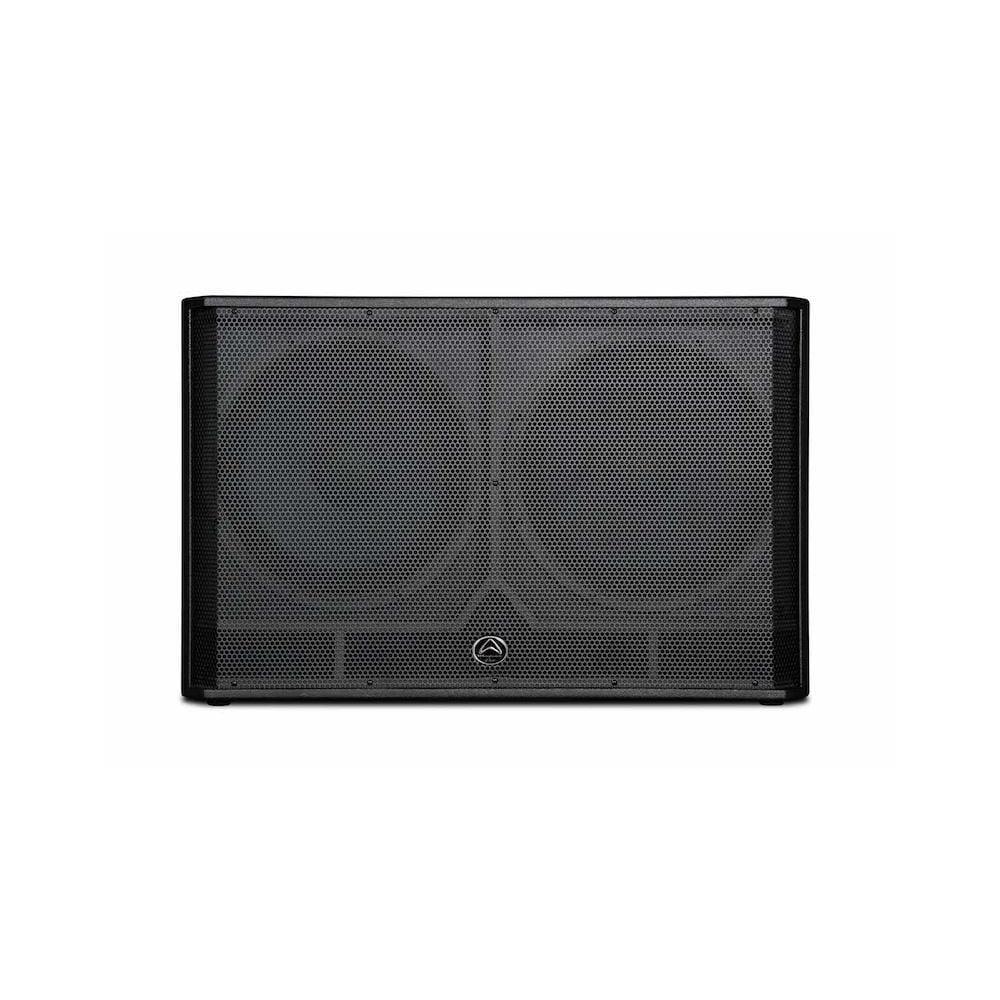

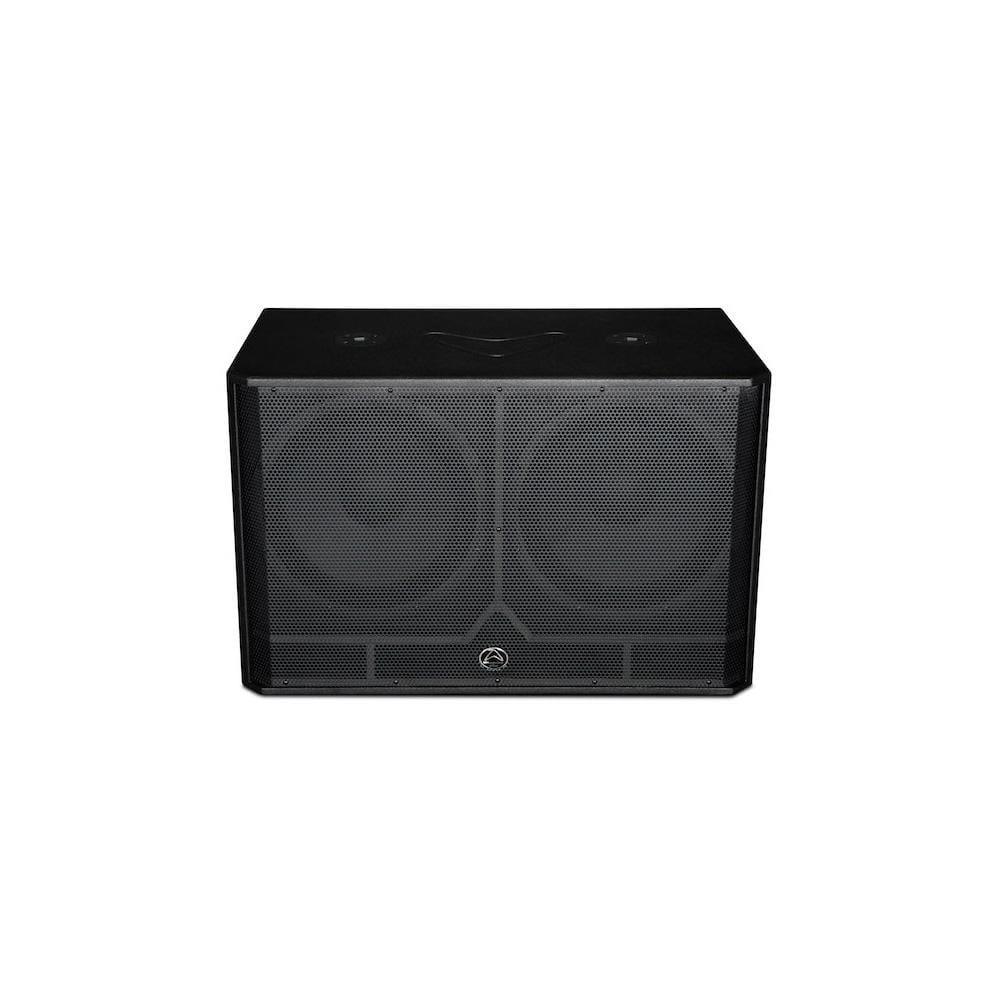

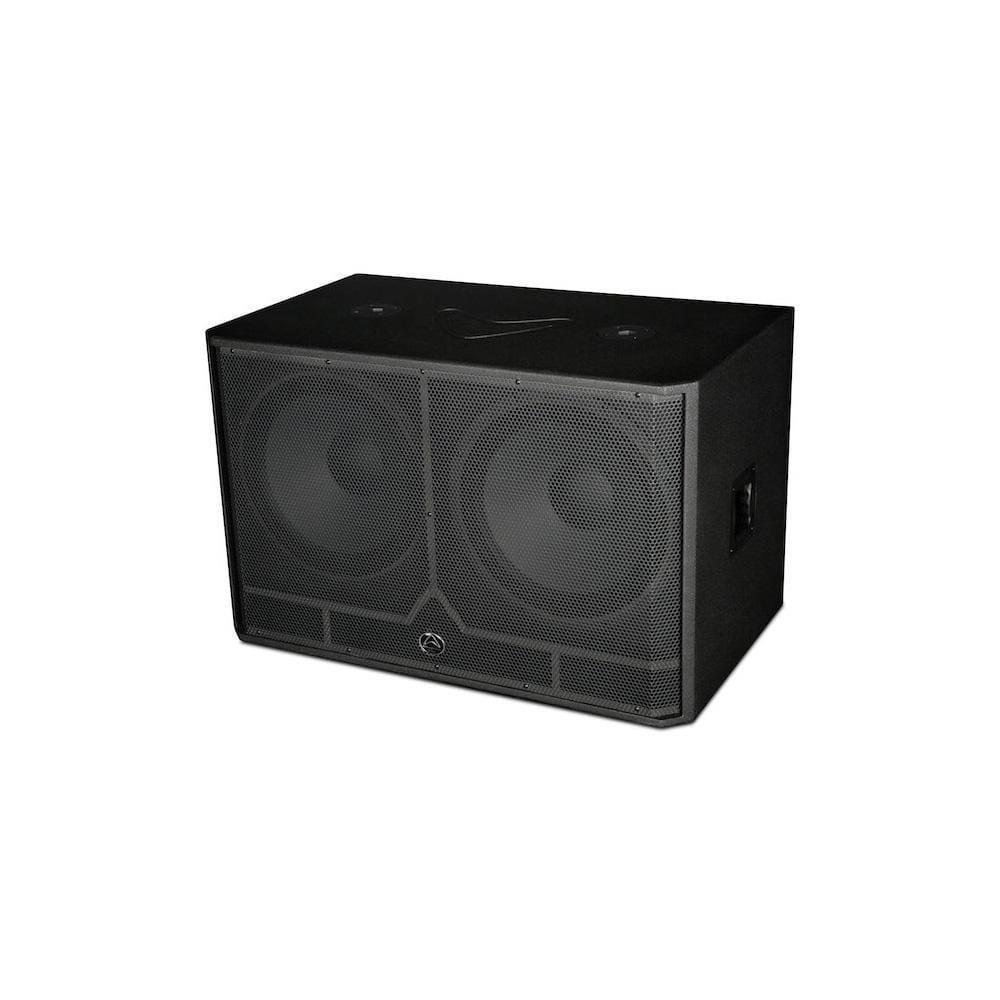

Wharfedale Delta-X218B Low Freq. Passive PA Speaker

Delta X builds on the global success of the Wharfedale Pro Delta series.
Constructed from 18mm plywood and covered in the highest quality Rhino Rock paint, the new Delta X218B is instantly recognisable by its engraved iconic Wharfedale Pro ‘boomerang’ logo on its surface. The fresh cosmetic design, however, is not the only improvement the engineering team have made in creating the Delta X series.
Internally Delta X models have a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

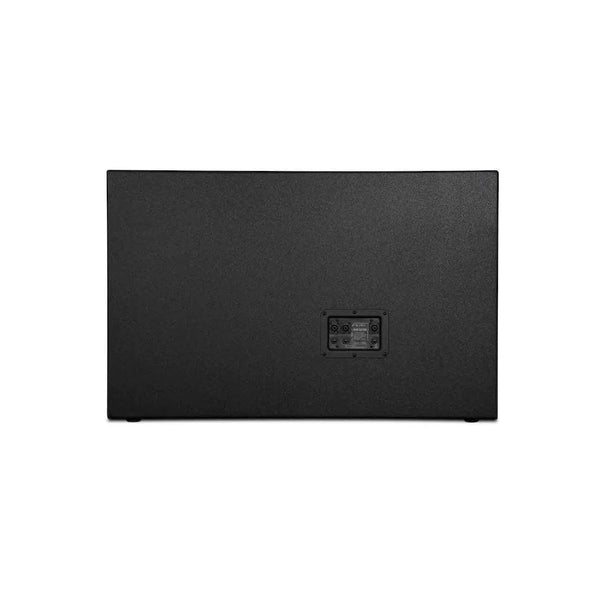

With rear panel switching, Delta X218 has Discrete and Parallel modes of operation. This allows to address each LF driver individually, or as a pair. This routing flexibility allows for Delta X systems to be refined using multiple amplifiers and external crossovers.

Custom Wharfedale Pro transducers have been selected. High output, low physical distortion cast frame woofers deliver an unparalleled low-frequency response. With the exception of the Delta X10, 2” titanium compression drivers have coupled to 90°x45° elliptical waveguides for impressive output level and smooth HF dispersion.

With a full lineup of 9 new models, ranging from the 300w RMS Delta X10 to the 1600w RMS Dual Chamber 2 x 18” Delta X218 subwoofer, Delta X models are perfect for fixed installation and touring applications.

Features

  • 2 x 18" LF drivers
  • 4" voice coils
  • 138dB Max SPL
  • Birch plywood construction
  • Premium Rhino Rock paint
  • 4Ω Parallel and 8Ω operation
  • 1600w parallel continuous
  • 3200w parallel programme
  • 6400w parallel peak
  • 4 carry handles

Tech Specs

Model Name DELTA-X218B
System Type Passive
Configuration Dual Chamber Subwoofer
Frequency Response (+/-3dB) 30-1.5KHZ
Frequency Range (- 10 dB) 30-1.5KHZ
Sensitivity (2.83v/1m) 100dB
Calculated Maximum SPL @1m 138dB
System Rated Impedance Parallel:4Ω Discrete:8Ω x2
Low Frequency Transducer
Size 470mm / 18"
Voice-Coil Size 102mm / 4"
Rated Impedance 2x8Ω
LF Power (re:AES2-2012) 800W
Power
System Continuous Power 1600W Parallel / 800W Discrete
System Programme Power 3200W Parallel / 1600W Discrete
System Peak Power 6400W Parallel / 3200W Discrete
Input Connector 2 x NL4 (speakON Compatible)
Height 541mm / 21.3"
Width Front 1041mm / 41.0"
Width Rear 1041mm / 41.0"
Depth 650mm / 25.6"
