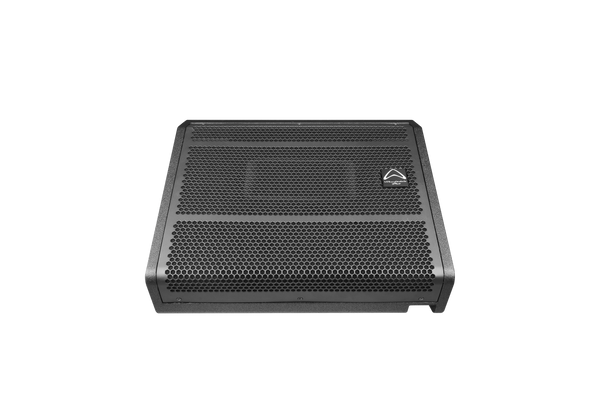

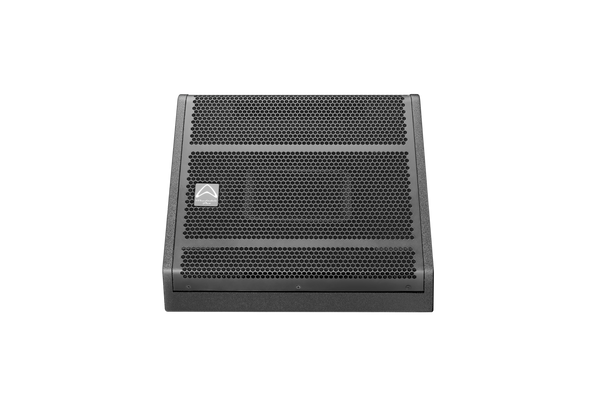

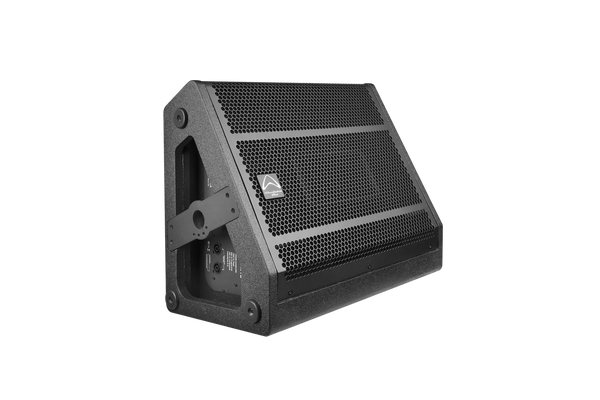

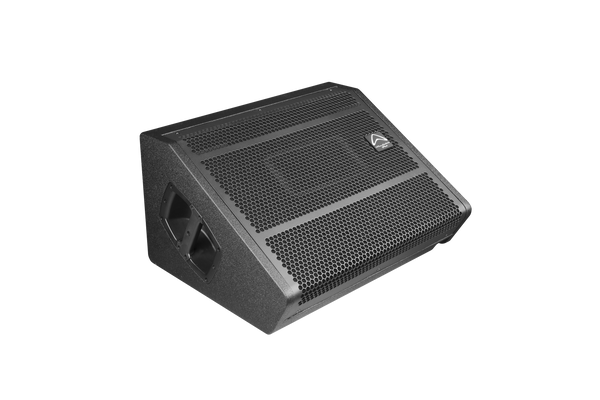

Wharfedale Pro WDGX12 Speaker Monitor Passive 1x12" 900W Programme 8Ω Impedance Wooden Paint Body
2,516.85 Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro WDGX12 Speaker Monitor Passive 1x12" 900W Programme 8Ω Impedance Wooden Paint Body
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
الإمارات العربية المتحدة
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
الإمارات العربية المتحدة
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
الإمارات العربية المتحدة
Pay as low as Dhs. 629.2125\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
FEATURES
- 450 W Continuous
- 900 W Programme
- 1800 W Peak
- 131 dB Max SPL at 1 m
- 12″ Beyma coaxial driver
- Rotatable constant directivity waveguide
- 80° x 40° nominal dispersion
DESCRIPTION
Put your boot on it
WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg……
WDG-12, WDG-15 and active variants WDG-A12, WDG-A15, feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70° nominal coverage. WDG-X12 and WDG-X15 use Beyma coaxial drivers and are coupled to a rotatable 80° x 40° Constant Directivity waveguide.

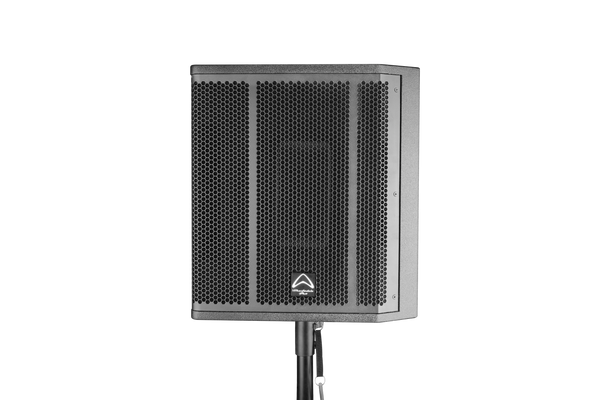

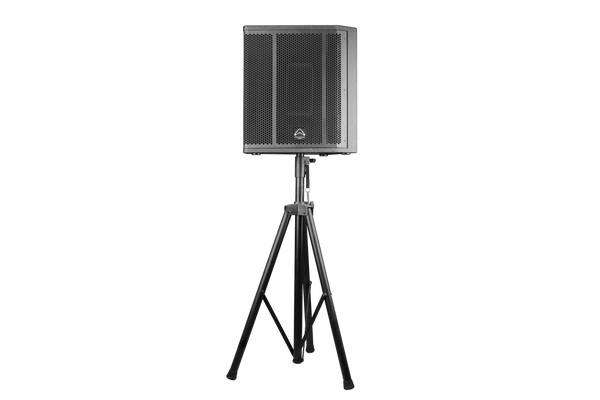

All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.
Active models feature 8 x DSP presets for easy hands on control, but can also be managed using RS485 protocol with the Wharfedale Pro PRO=LINK software. This allows for detailed remote preset editing and system management. There is also a practical HF Output EQ knob for any real-time tweaks needed on-stage.
Stage, pole, near or far or even on a wall. WDG delivers all the advantages of coaxial in a versatile manner.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model Name | WDG-X12 |
| System Type | 12" coaxial passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 55 Hz – 20 KHz |
| Frequency Range (-10 dB) | 35 Hz – 25 KHz |
| Sensitivity (2.83 V/1 m) | 98 dB |
| Calculated Maximum SPL @1 m | 131 dB |
| System Peak SPL* | 137 dB |
| System Rated Impedance | 8 Ω |
| LF Size | 12" |
| LF Voice Coil Size | 4.0" |
| LF Frame Material | Aluminium |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2.87" |
| Exit Size | 1.5" |
| Diaphragm Material | Composite titanium / polyester |
| Waveguide Type | Constant Directivity |
| Nominal Coverage (H x V) | 80° x 40° (rotatable) |
| Special Features | Copper demodulating rings in LF & HF, waterproof LF cone, shared high performing ferrite magnet |
| Driver Brand | Beyma |
| System Continuous Power (W) | 450 W |
| System Programme Power (W) | 900 W |
| System Peak Power (W) | 1800 W |
| Crossover Frequency | 1.2 KHz |
| Recommended HPF (BW 18 dB/oct.) | 30 Hz |
| Rigging & Hardware | 35 mm pole-mount; 4 x M8 threaded points for WPB-7 or Powerdrive™ Series 100 |
| Optional Accessories | WDG-12 horizontal flying yoke, heavy-duty transport soft cover |
| Handle | 1 on top |
| Cabinet Type | Polygonal shape |
| Enclosure Material & Finish | 15 mm plywood, Tough-Tone |
| Colour Options | Black paint (white on request) |
| Grille Material & Finish | Powder-coated steel |
| Monitor Angle | 60° – 25° |
| Dimensions (Unpacked H x W x D) | 310 x 540 x 471.7 mm (12.2" x 21.3" x 18.6") |
| Dimensions (Packed H x W x D) | 635 x 560 x 398 mm (24.9" x 22.1" x 15.7") |
| Net Weight | 25.1 kg / 55.2 lbs |
| Gross Weight | 28.1 kg / 61.8 lbs |
