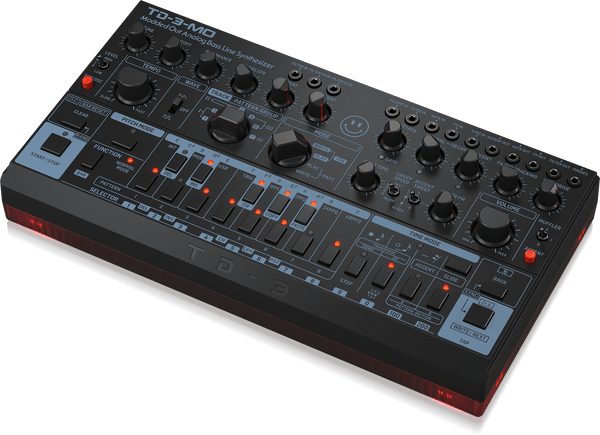

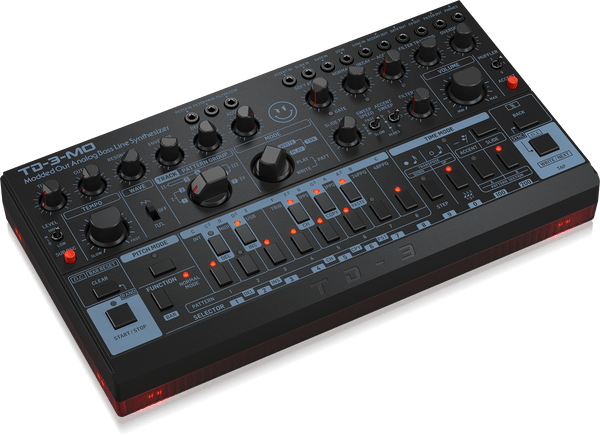

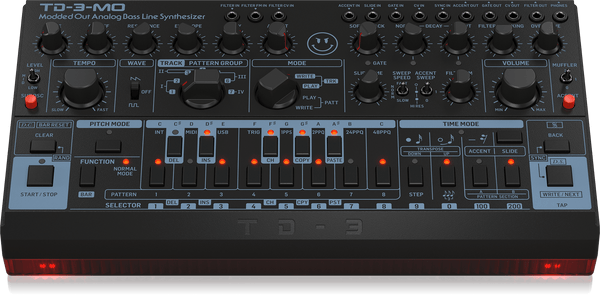

Behringer TD3MOBK “Modded Out” Analog Bass Line Synthesizer with VCO, MIDI-Controllable VCF and Sub-Harmonics Oscillator
722.00 Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Behringer TD3MOBK “Modded Out” Analog Bass Line Synthesizer with VCO, MIDI-Controllable VCF and Sub-Harmonics Oscillator
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
الإمارات العربية المتحدة
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
الإمارات العربية المتحدة
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
الإمارات العربية المتحدة
Pay as low as Dhs. 180.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
FEATURES
-
“Modded Out” Bass Line synthesizer featuring the most legendary modifications
-
Pure analog signal path based on legendary VCO, VCF and VCA designs
-
Sawtooth and square waveform VCO with transistor wave-shaping circuitry
-
Amazing 4-pole low-pass resonant filter with cut-off, resonance, envelope, decay and accent controls
-
Easy-to-use 16-step sequencer with 7 tracks, each with 250 user patterns
-
Filter frequency fully controllable via MIDI CC
-
Earth-shattering sub-harmonics oscillator with switchable output level
-
Authentic analog slide circuitry with external slide control
-
Slide Time control allows for variable slide time (up to 6 times longer)
-
Sweep Speed switch features 3 accent speed modes (slow, norm, fast)
-
Accent Sweep switch features 3 sweep combinations with high resonance mode
-
Filter FM control modulates frequency of the filter from the audio output of the VCA
-
Muffler circuitry features post VCA distortion with full bass response
-
Dedicated Accent push button to manually activate the accent
-
Soft Attack control for wide range of attack times for non-accented notes
-
Normal control for wide range of decay time for non-accented notes
-
Accent control for wide range of decay time for accented notes
-
Filter Tracking control for filter frequency tracking of the current note
-
Overdrive control adds insane spice and edge to your sounds
-
Massive amount of CV and Gate in/outs for extreme creativity
-
16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony
-
Premium quality VRs featuring high resolution and metal shafts for long life cycle
-
15 controls and 33 switches to give you direct and real-time access to all important parameters
-
MIDI and USB implementation with MIDI channel and Voice Priority selection
DESCRIPTION
TD-3-MO-BK
Sometime after the release of the original TB-303, creative users realized that there was more to squeeze out of an already amazing bass machine, to produce sounds that were unique to themselves. As word started spreading about third-party mods adding more functions and many more ways to shape sounds, synth-heads around the world wanted to get their hands on a modded TB-303. Now it’s a lot easier to get that awesome “modded-out” sound with the Behringer TD-3-MO-BK, an ultra-affordable and faithful homage to the iconic synthesizer that’s capable of creating some fiery basslines and much more now in a sleek black enclosure.
With its pure analog signal path, 16-step sequencer and authentic VCO, VCF and VCA filters, the TD-3-MO-BK is sure to become one of your favorite synthesizers.
Pure Analog Signal Path
Great care has been taken in engineering the TD-3-MO-BK, including the true to the original VCO, VCF and VCA designs and pure analog circuitry with matched transistors. This highly-focused attention to detail is what gives TD-3-MO-BK its ultra-flexible sound shaping capability, which covers a wide spectrum for you to create some super-funky bass lines and pounding rhythms that can keep you, and the crowd, grooving all night long.
Rock Right Out of the Box!
Your TD-3-MO-BK comes ready to rock, thanks to its default signal routing that doesn’t require lifting a single patch cable to instantly create amazing sounds. The highly-intuitive layout lets you easily tap into the inspired sounds of 1980s and ’90s wave, EDM and synth-pop music tracks that made history – or to design incredibly fat and original sounds that will make you a legend in your own right!
SPECIFICATIONS
| Category | Specification | Details |
|---|---|---|
| Synthesizer Architecture | Number of Voices | Monophonic |
| Type | Analog | |
| Oscillators | 1 | |

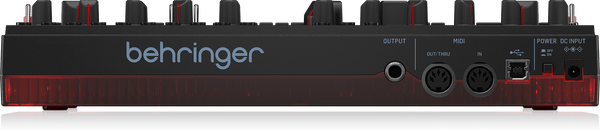

| Connectivity | Power Input | DC input connector |
| Power Switch | Push button on/off | |
| MIDI In/Thru | MIDI In and MIDI Thru, 5-pin DIN | |
| USB (MIDI) | USB 2.0, Type-B | |
| Outputs | Line output: 1/4" TRS, unbalanced, max. +8 dBu | |
| Output Impedance | 1.5 kΩ | |
| Headphones | 3.5 mm TRS, max. 50 mW / 32 Ω (1 kHz, 1% THD) | |
| Headphones Output Impedance | 15 Ω | |
| USB | Type | Class compliant USB 2.0, Type-B |
| Supported OS | Windows 7 or higher, Mac OS X 10.6.8 or higher | |
| Inputs (3.5 mm TS) | Filter In | -6 V to +6 V |
| Filter FM In | 0 V to +12 V | |
| Filter CV In | 0 V to +12 V | |
| Accent In | Off: 0 V, On: +12 V | |
| Slide In | Off: 0 V, On: +3.3 V | |
| Gate In | Off: 0 V, On: +3.3 V | |
| CV In | +1 V to +5 V | |
| Sync In | More than 2.5 V | |
| Outputs (3.5 mm TS) | Accent Out | Off: 0 V, On: +6 V |
| Gate Out | Off: 0 V, On: +12 V | |
| CV Out | +1 V to +5 V (1 V/oct) | |
| Filter Out | -400 mV to +400 mV |
