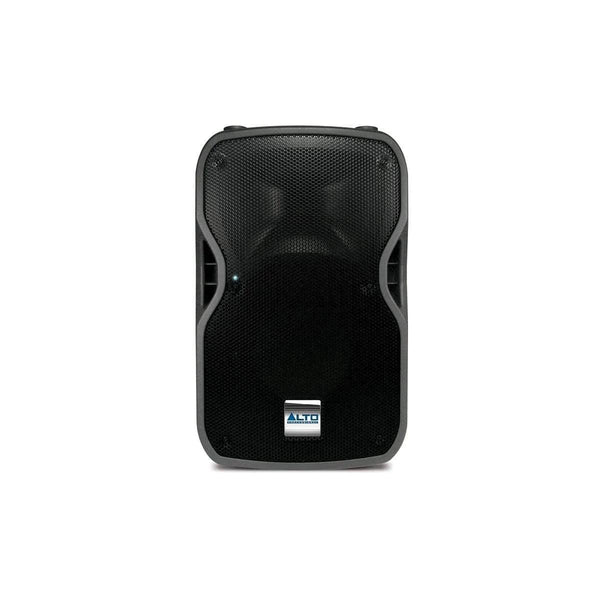

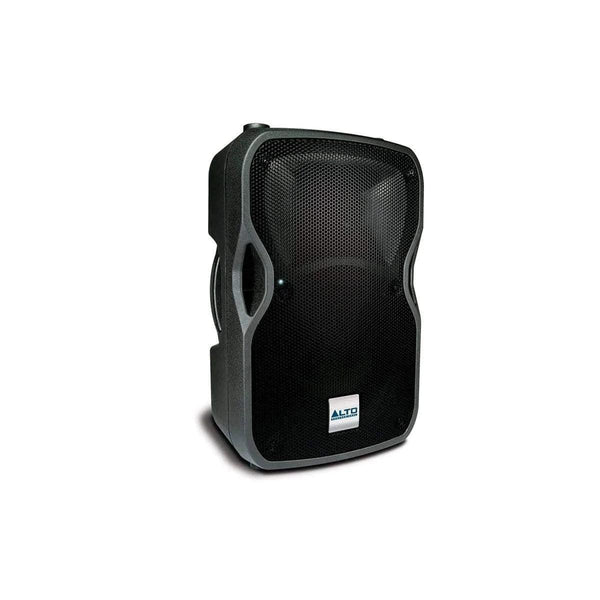

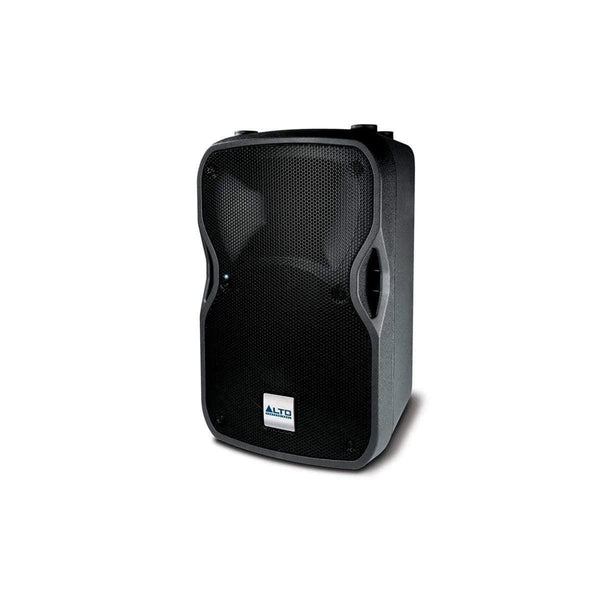

The Alto TS110A Active 600 Watt 2-Way 10" Loudspeaker cabinet has been designed with versatility and longevity in mind. It features a durable, lightweight polypropylene enclosure that is stand mountable for weekend gigs and flyable for more permanent installations. The loudspeaker features a trapezoidal design which greatly decreases the resonance of the standing wave in the cabinet for true and exact sound reproduction. The loudspeaker is suitable for musicians and DJs on the move, halls, malls, and houses of worship alike.
The drivers in the loudspeaker are designed to make sure that virtually no energy is wasted. That translates to more of the power from the amplifier actually working to generate sound rather than heat, giving better performance than other speakers. The loudspeaker features a 10" LF driver, 1.5" voice coil, and a 1" HF driver (Neodymium Driver).
The loudspeaker features a Class D amplifier integrated into its cabinet. Class D amps are lighter than Class A and AB amplifier designs and offer enough power to provide your performance with plenty of punch. The loudspeaker delivers 600W of power (470 W LF + 130 W HF) and offers a balanced combo jack (XLR/TRS) input.
You can fly the TS110A loudspeaker, pole mount or use them as floor monitors. The loudspeaker features standard 36mm pole mounting insets on the bottom. If you need to fly them, it's no problem, as they come from the factory with 4 M10 rigging points. All these options make the loudspeaker, a venue-friendly speaker.
It is easy to get the loudspeaker to the gig thanks to their carrying handle and lightweight design. EQ'ing the speakers is easy thanks to the built-in Contour EQ switch that can help adjust for those situations where you need an EQ alternative for recorded music playback. The loudspeaker's dual XLR/combo inputs make easy work of your speaker setup and each speaker's independent level controls give you the flexibility to dial everything in your way. The loudspeaker comes with a complete front grille from top to bottom that not only protects your low-frequency driver but your high-frequency driver as well. It is a versatile loudspeaker that is suitable for small/mid-sized PA systems, halls, auditoriums, amphitheaters, bars, restaurants, clubs, gymnasiums, fitness centers, and dance studios, as well as houses of worship, mobile DJ systems, presentations, and weddings.
|Transducer Low: 10" Woofer with 1.5" voice coil|
|Transducer High: Neodymium compression driver, 1" exit with 1" voice coil|
|Power Amplification: 600 Watts peak (470 W LF + 130 W HF), 300 Watts continuous (235 W LF + 65 W HF)|
|Frequency Range: (-10 dB): 53 Hz - 20 kHz|
|Frequency Response: (±3 dB): 70 Hz - 19 kHz|
|Maximum SPL @ 1m: 123 dB peak, 120 dB continuous|
|6 dB Nominal Coverage: 80 / 100H x 60V nominal|
|Active Crossover: 2.5 kHz|

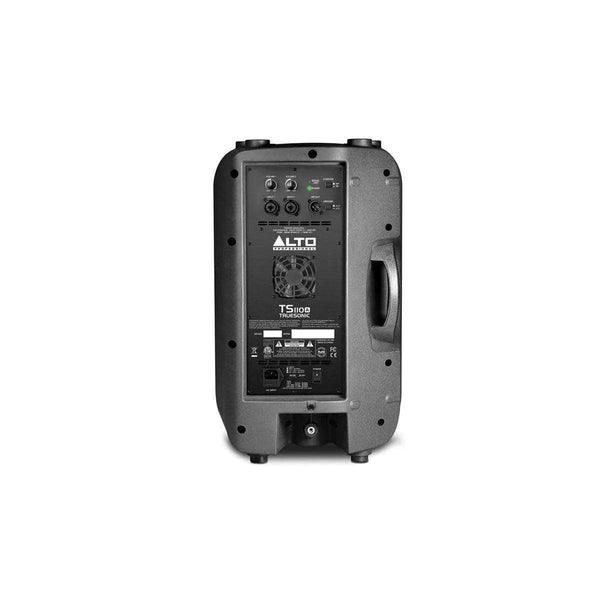

|Connectors: 2 x Mic / Line Female XLR - 1/4" combo inputs, 1 x Loop - Out Male XLR|
|Input Control: Line / Mic -° to +50 dB, Maximum input level +23 dBu , Input Impedance 15 kOhms|
|External Controls: Volume, Power switch with LED indicator, Clip/Limit LED, Ground Lift switch|
|Protection Features: Over-excursion, Thermal, Driver|
|AC Power: 100 VAC, or 110 - 120 VAC, or 220 - 240 VAC (50 / 60 Hz)|
|Enclosure: Trapezoidal, with floor monitor capability. Injection-molded, polypropylene enclosure, with a perforated steel grille|
|Mounting: Integrated pole-socket (36 mm dia.) One Handle, four M10 threaded sockets: 2 top, 2 bottom|
|Dimensions (WxLxH): 20.2in x 12.99in x 11.73in|
|Weight: 26.6 lb|
