Akai Professional

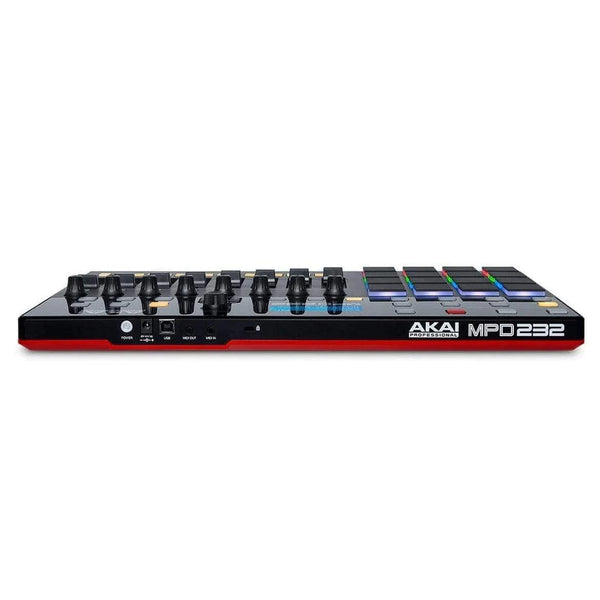

AKAI Professional MPD232 Controller

The MPD232 is a MIDI-over-USB pad controller perfect for producers, programmers, musicians and DJs alike. Its intuitive blend of MPC controls and technologies mesh with easy USB connectivity to bring the feel of classic beat making into the world of computer music production.

(power adapter available separately)*

Weight 4.2 lb / 1.9 kg
Buttons 3 x transport buttons, 4 x directional cursor buttons for display navigation, 16 x step buttons
Compatibility: Windows: 1.5 GHz Pentium 4 Celeron-compatible CPU or faster (multicore CPU recommended) 1 GB RAM (2 GB recommended) Windows 8, 7, Vista, or XP Windows-compatible sound card (ASIO driver support recommended, QuickTime recommended)
Dimensions 16.6 x 10.0 x 1.9" / 42.2 x 25.4 x 4.8 cm
Display 20 x 4 characters, monochrome backlit with adjustable contrast
Faders 8 x 45 mm assignable faders 3 x banks accessible via Control Bank buttons
Inputs/Outputs - Other 1 x power input (power adapter available separately), 1 x Kensington lock slot
Knobs 8 x 360° assignable knobs
MIDI 1 x 1/8" MIDI input (1/8" to MIDI adapter included) 1 x 1/8" MIDI output (1/8" to MIDI adapter included)
Pads 16 x velocity- and pressure-sensitive pads, RGB-backlit 4 x banks accessible via Pad Bank buttons
Power USB charger (available separately) or USB bus Via power adapter, 6 VDC, 1 A, center-positive (available separately)
USB 1 x USB port
